Ball Screw and Nut - SFU2010

Ball screws, as well as being able to apply or withstand high thrust loads, they can do so with mini...

Description

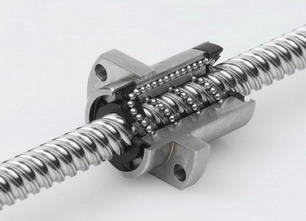

Ball screws, as well as being able to apply or withstand high thrust loads, they can do so with minimum internal friction. They are made to close tolerances and are therefore suitable for use in situations in which high precision is necessary. The ball assembly acts as the nut while the threaded shaft is the screw.

If a product is out of stock - please contact us for a proforma to reserve stock for next shipment. If you require a custom length please do contact us - due to weight, airfreight is expensive - sea freight can take 2 - 3 months.

Features

  • Ball Screw and Nut
  • End Machined:
    • Rear OD: 15mm
    • Front OD: 15mm
    • Coupling OD: 12mm
  • See related products for end supports (if required)
  • See related products for ball nut housing bracket (if required)
  • Length indicated is total length of ball screw including machined ends.
  • Pitch: 10mm
  • Material: GCR 15 Steel
  • Grade: C7
  • Hardness: HRC58-62



SFU2010-1000mm
SKU: 101718
Availability: 7 in stock
R1 357,00
:
SFU2010-1500mm
SKU: 101720
Availability: 4 in stock
R2 458,00
:
SFU2010-2000mm
SKU: 101721
Availability: 5 in stock
R2 647,00
:
