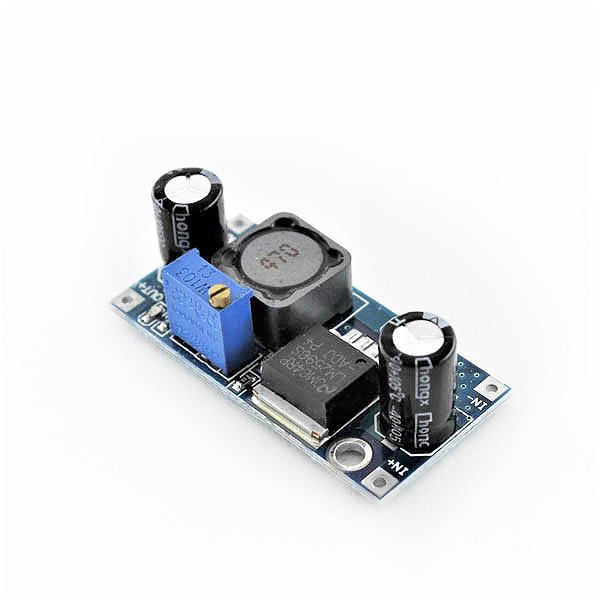

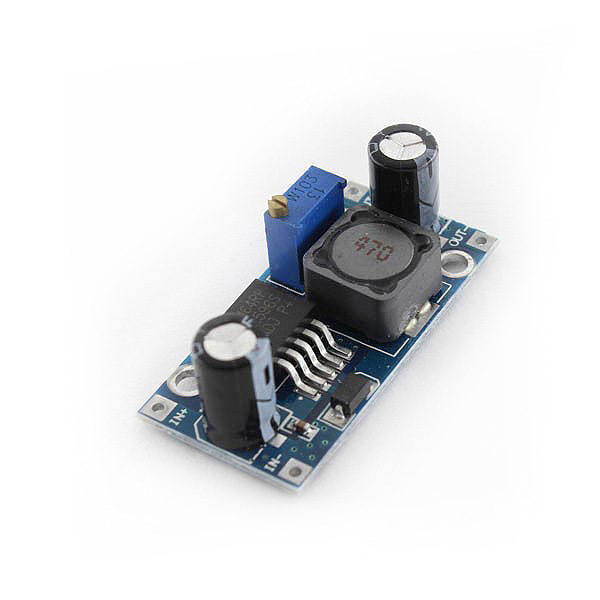

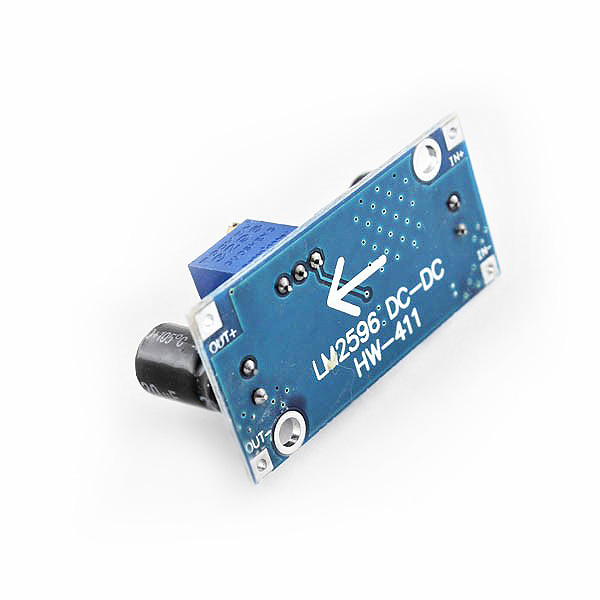

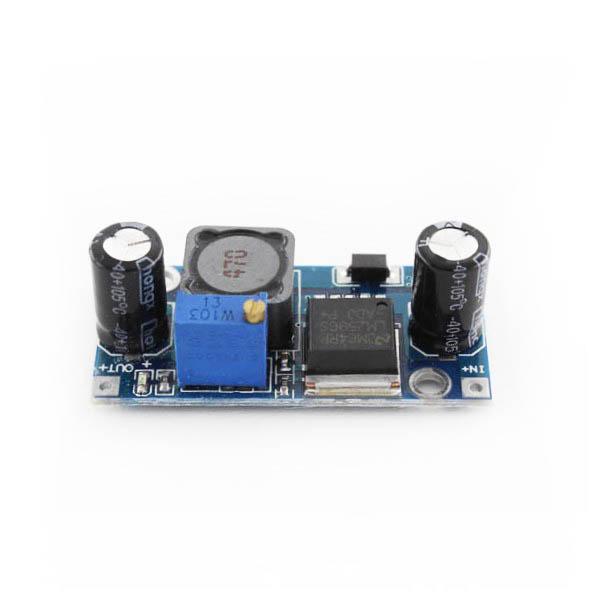

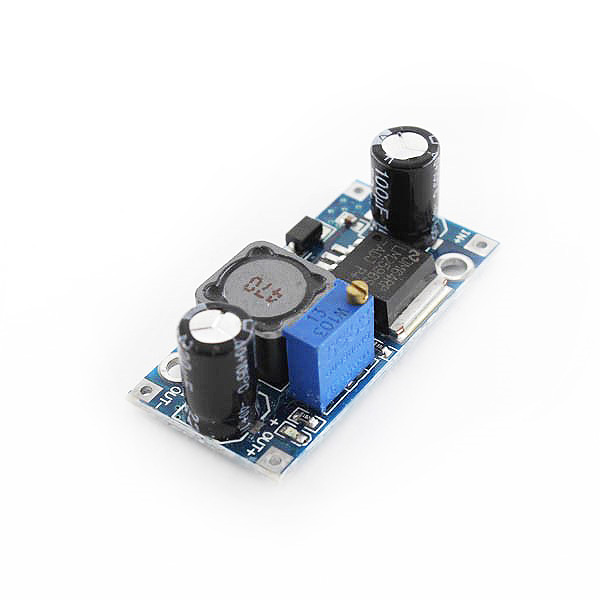

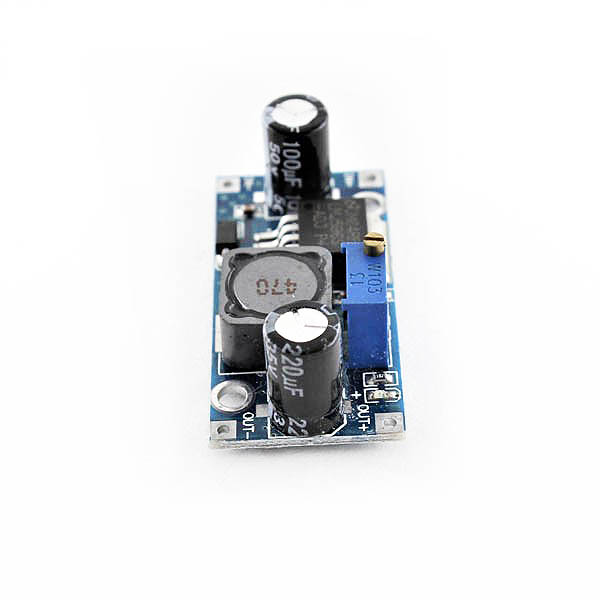

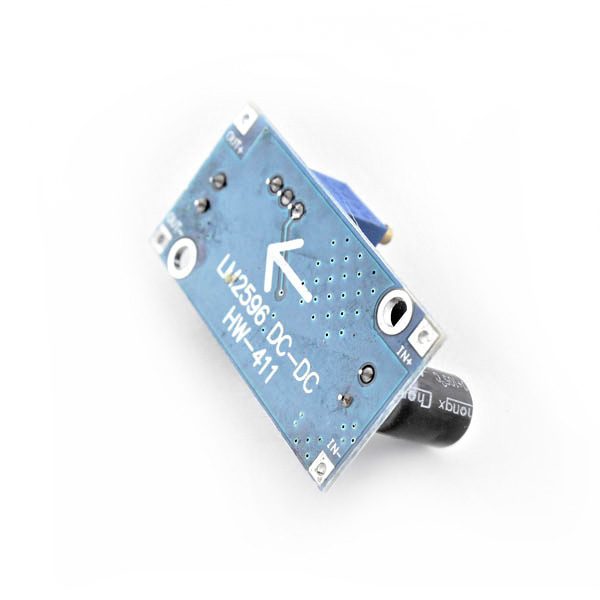

DC-DC CV Step-Down Buck Power Module 1.25V-35V

This is a DC/DC step-down voltage regulator that converts input voltage between 3.2V and 40V into a ...
SKU: 101495
Availability: Out of stock
R0,00
:

Description

This is a DC/DC step-down voltage regulator that converts input voltage between 3.2V and 40V into a smaller voltage between 1.25V and 35V, capable of driving a 3A load with excellent line and load regulation.
In some projects, you might need different voltages (3-35V) for your devices. This module can speed up prototyping, because you can get the voltage you need (such as 3.3V, 5V and 9V) as easy as that.
Note: Input must be >1.5V higher than output.

Features

  • Wide Output Voltage Range
  • Ensured 3A Output Load Current
  • Input Voltage Range Up to 40V
  • Excellent Line and Load Regulation
  • Low Power Standby Mode, Typically 80uA
  • High Efficiency Up to 92%
  • Precise potentiometer for voltage adjustment
  • Thermal Shut down and Current Limit Protection
  • Input Voltage: 3.2V - 40VDC
  • Output Voltage: 1.25V - 35VDC
  • Max. Output Current: 3A
  • Max. Efficiency: 92%
  • Output Ripple: 100mV
  • Switching Frequency: 65KHz
  • Operating Temperature: -45 to +85

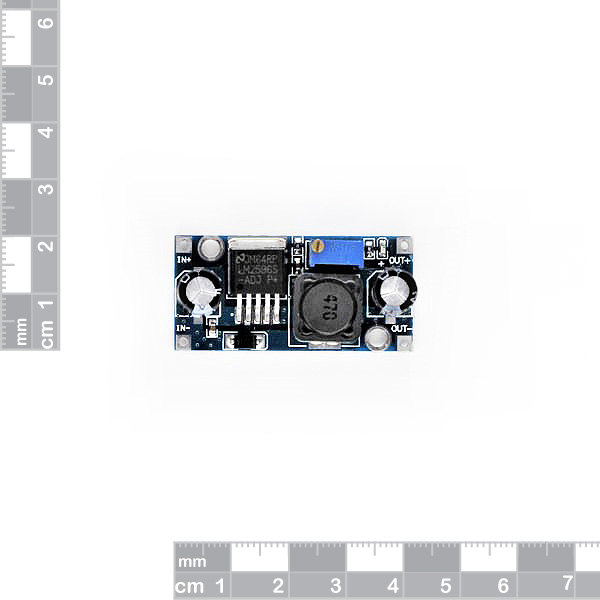

  • Dimensions: 43mm*21mm*14mm (l*w*h)
