Linear Rail - SBR Series

Please note: When items are out of stock, please contact us to make arrangements for pre-booking to avoid disappointment due to long lead-times. We can prepare a pro-forma invoice and ETA when stock can be expected. Lengths are pre-cut - we don't offer any cutting services.

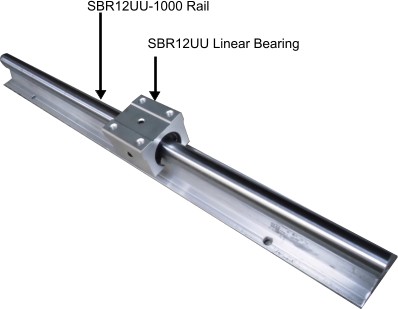

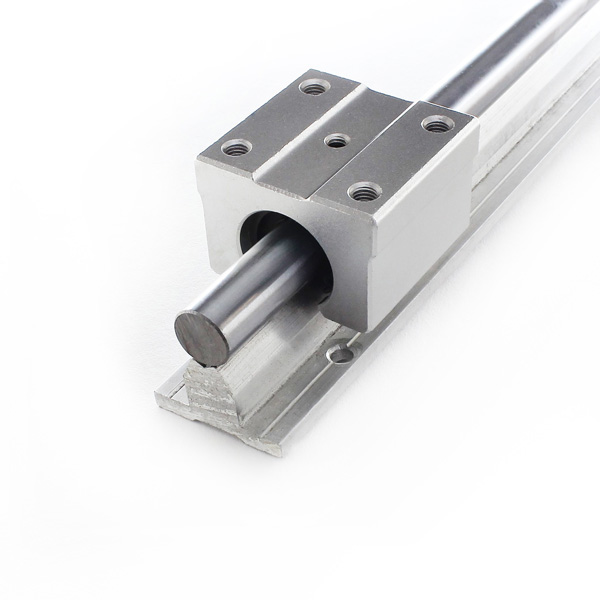

Please note the linear bearings / pillow blocks are sold separately, you can find them in the related products below. The aluminium mounting rail as depicted in the pictures is included.

• For SBR12 rails use SBR12UU linear bearing.
• For SBR16 rails use SBR16UU linear bearing.

• SBR12-300mm, 75mm start, 150mm incremental, 2 holes
• SBR12-500mm, 25mm start, 150mm incremental, 4 holes
• SBR16-500mm, 25mm start, 150mm incremental, 4 holes
• SBR16-1000mm, 50mm start, 150mm incremental, 7 holes
• SBR16-1500mm, 75mm start, 150mm incremental, 10 holes
• SBR20-500mm 25mm start, 150mm incremental
• SBR20-1000mm 50mm start, 150mm incremental
• SBR20-1500mm 75mm start, 150mm incremental
• SBR20-2000mm 25mm start, 150mm incremental
• SBR20-3000mm 75mm start, 150mm incremental
• SBR25-1000mm 100mm start, 200mm incremental
• SBR25-2000mm 100mm start, 200mm incremental
• SBR25-2500mm 50mm start, 200mm incremental

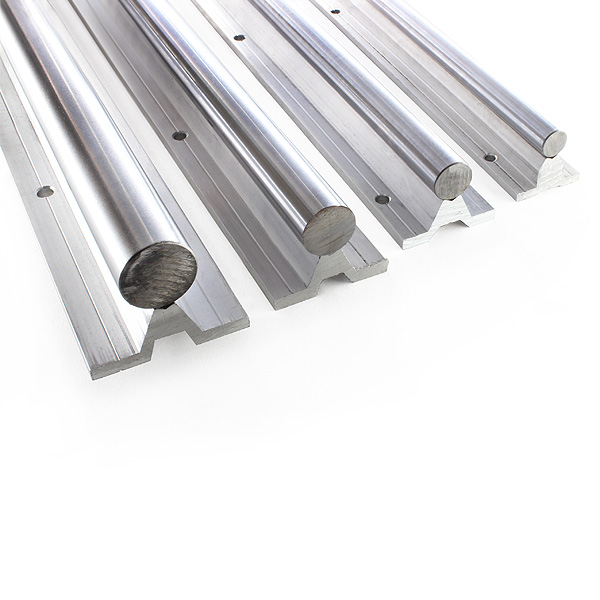

• SBR Rail
• Look in related product for support and pillow blocks.
• Lengths are pre-cut.
• C45 medium carbon hardened steel
• Chrome plated

• Tolerance Level g6
