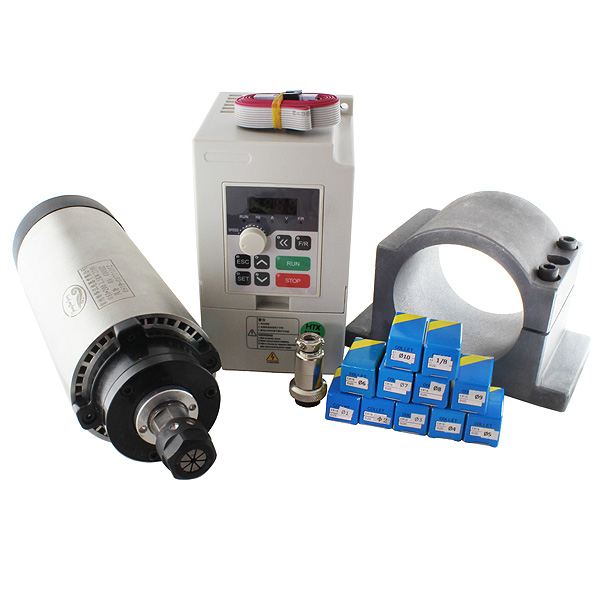

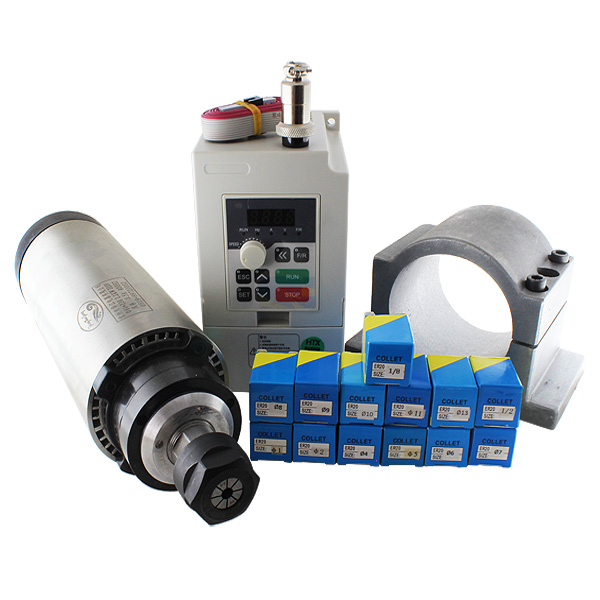

CNC Milling Spindle Motor Air Cooled + VFD

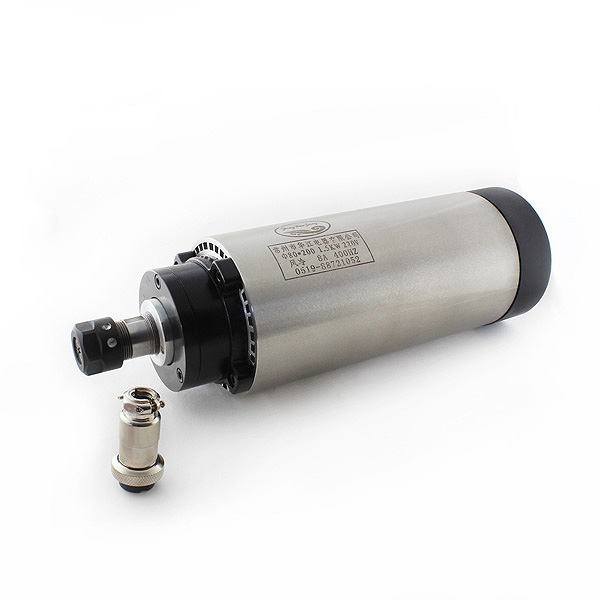

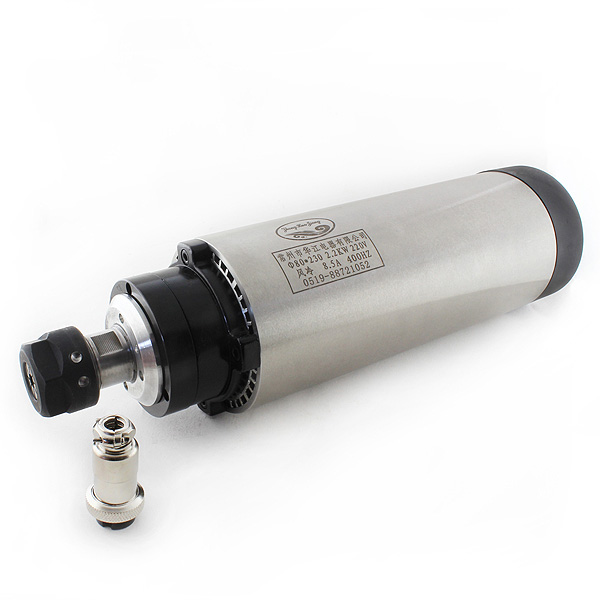

3.0kW Motor:

• Dimensions: 200mm x 100 x 85 mm
• 3 Phase, 8.6A, 300Hz

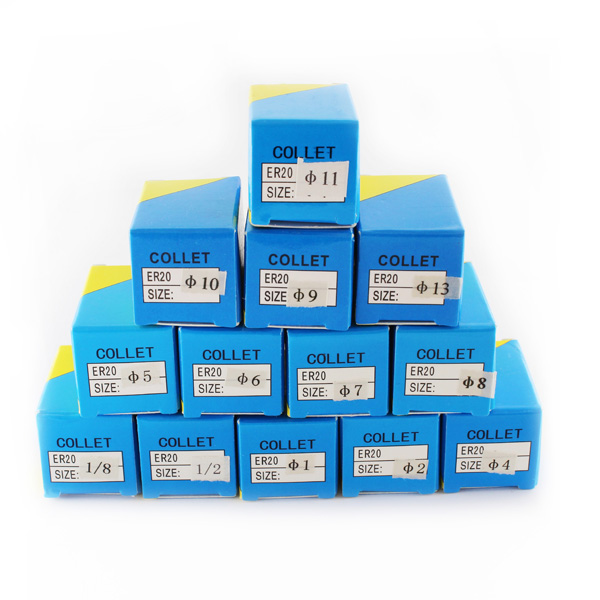

• ER20 Collet set: 1, 2, 4, 5, 6, 7, 8, 9, 10, 11, 13mm, 1/2 and 1/8"
• Tapped holes in the back for mounting, 6 x M6 - for vertical fastening

0.5kW Motor:

• 12.5mm diameter x 200mm

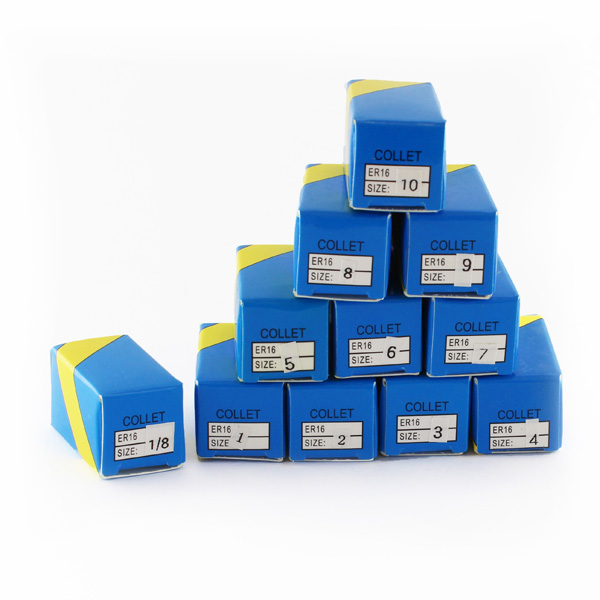

• ER11 Collet set: 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7 mm
• Mounting holes 4 x M4 close to the spindle head - for horizontal fastening
• 0.5kW is round - no ETA yet for mounting bracket - but can be mounted with a pipe collar clamp. Diameter is 12.5mm

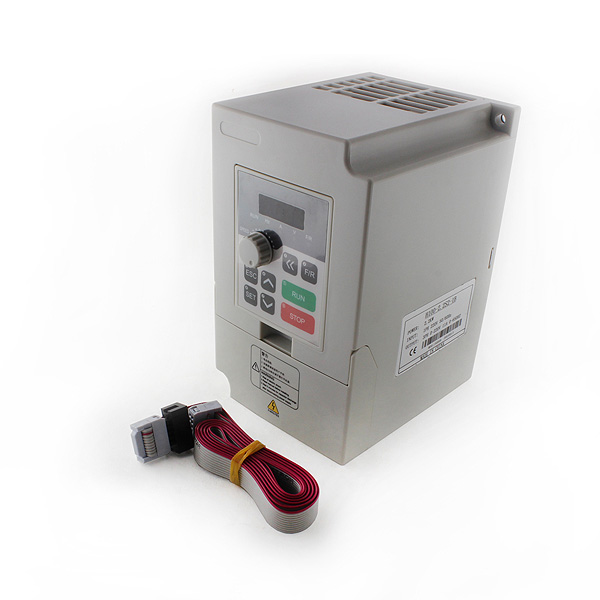

0.5kW Inverter:

• 110x141x51mm
• 2 Phase 220V Input, 0-100V 2 Phase Output
• 0-10V speed-control, external or with supplied potentiometer

• Spindle
• Collet set

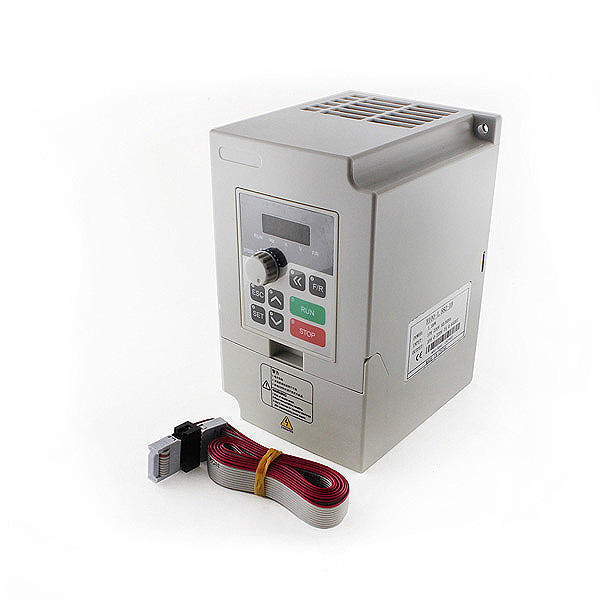

• VFD

• 3.0kW Inverter Manual ( 20MB)
• Youtube Instructional Video

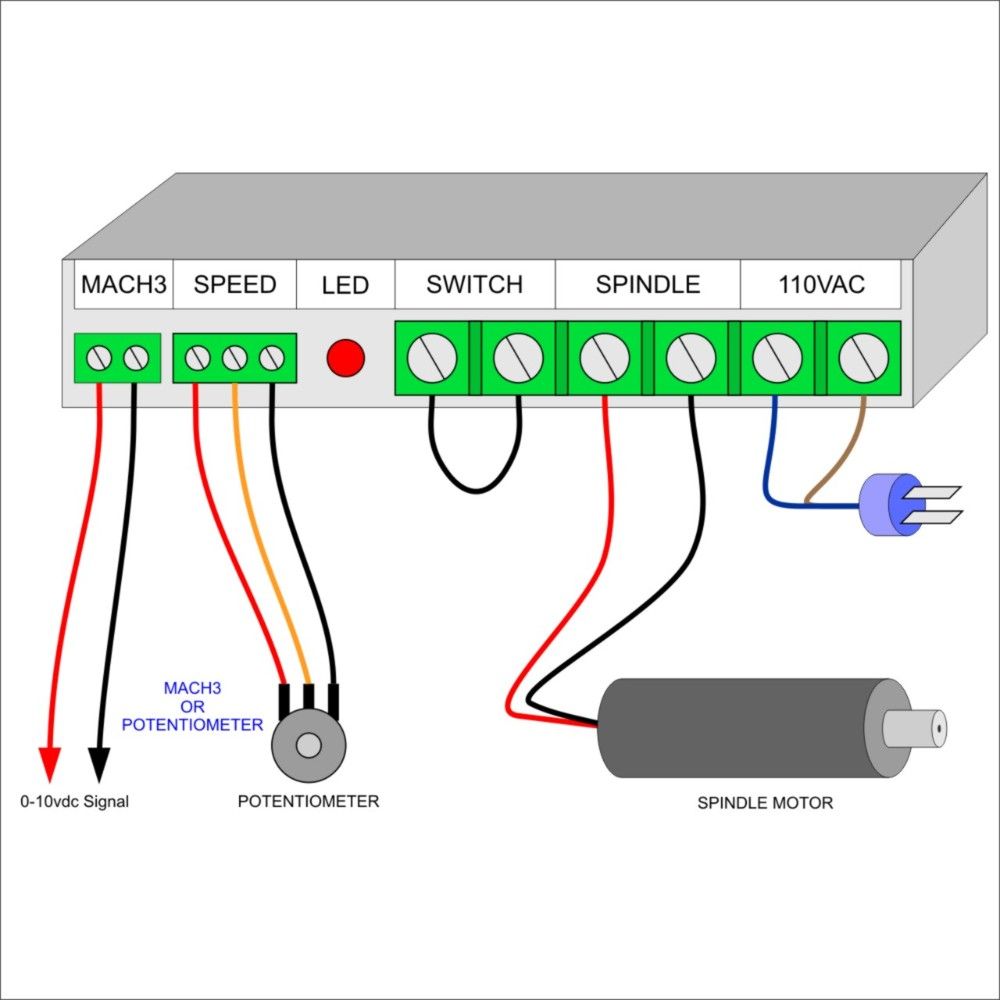

• 0.5kW Wiring Diagram
• Spindle Control with USB Board
