Leadshine ESD Series Servo Drives

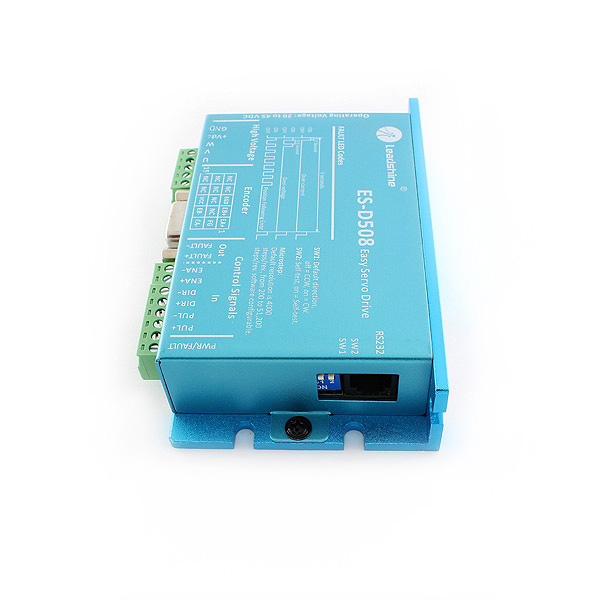

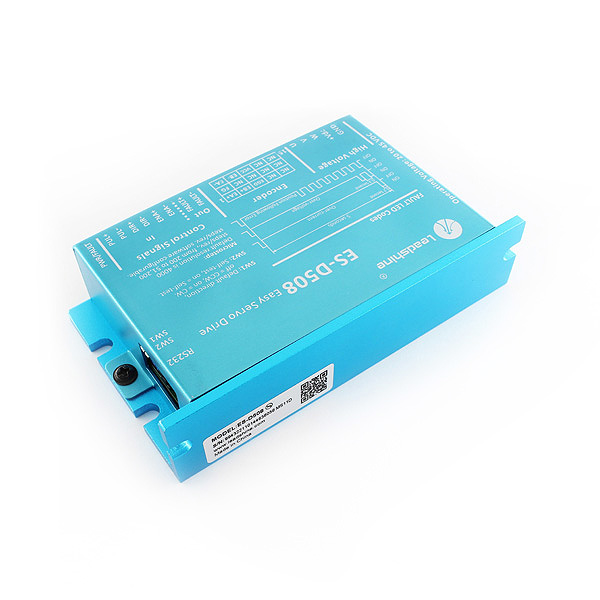

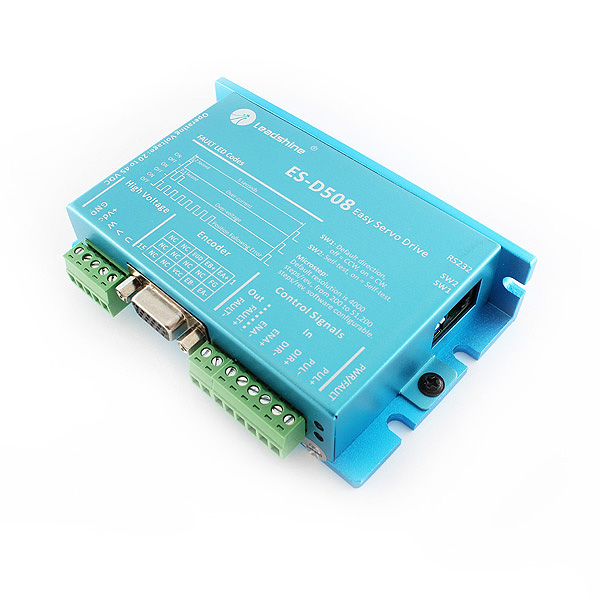

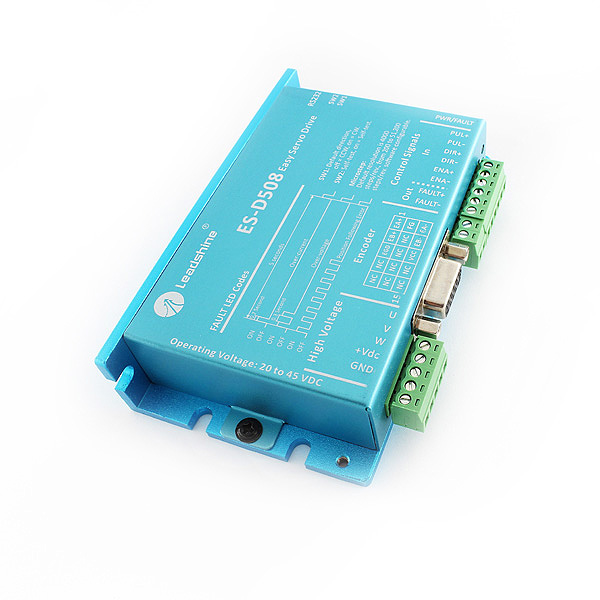

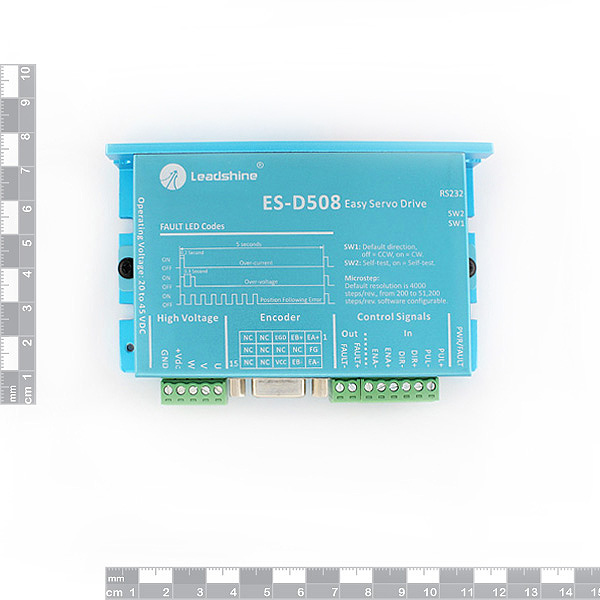

The Leadshine ES-D508 is the smallest of the ES-D series easy servo drives. It can take 20 to 50 VDC input voltage and output 0.5 to 8.0 A continuous load-based current. It is capable of driving NEMA 17, 23, 24 and 34 easy servo motors (stepper motors with encoders) with the position loop closed in real time. Parameter tuning tools, including ProTuner (Windows based setup software) can meet different tuning environments or requirements.

Please note: use for 3 phase motors.

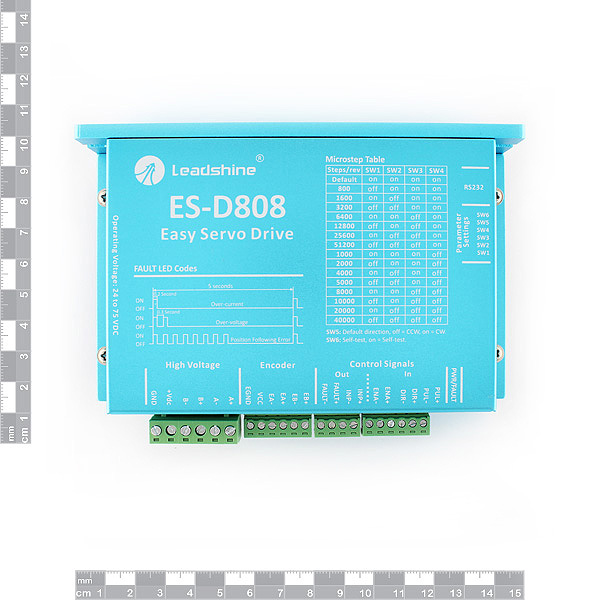

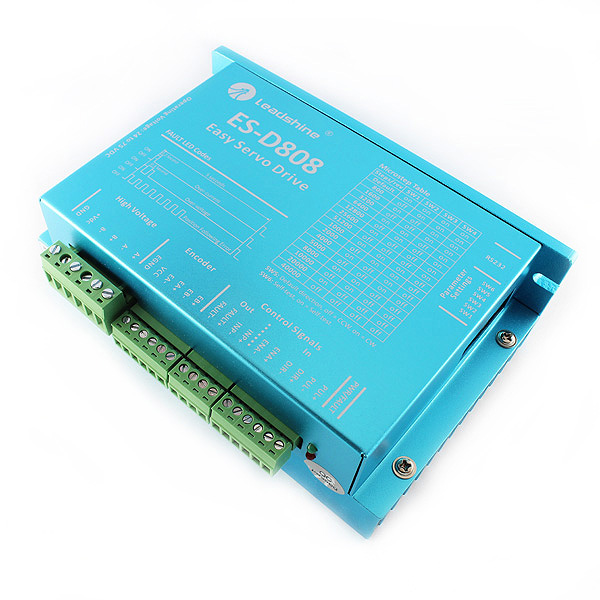

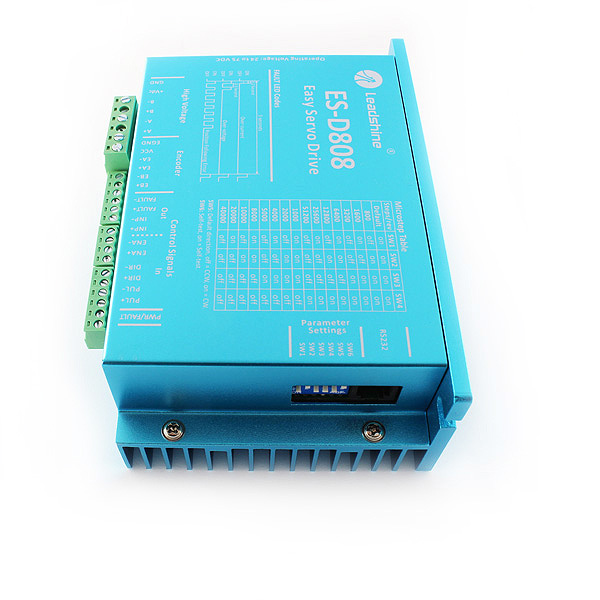

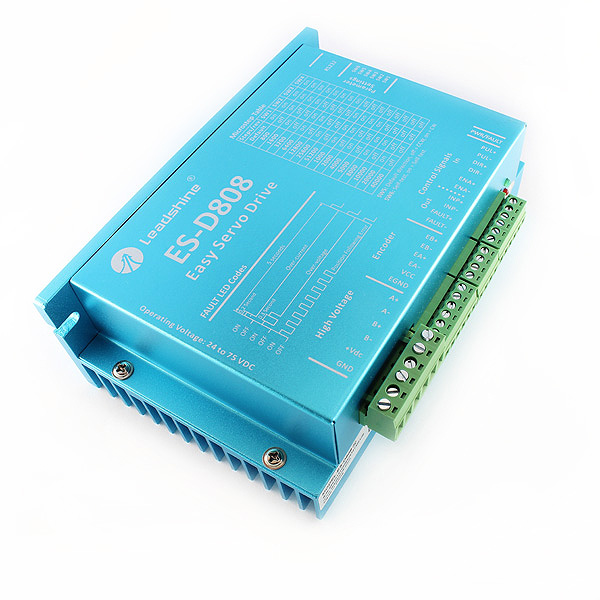

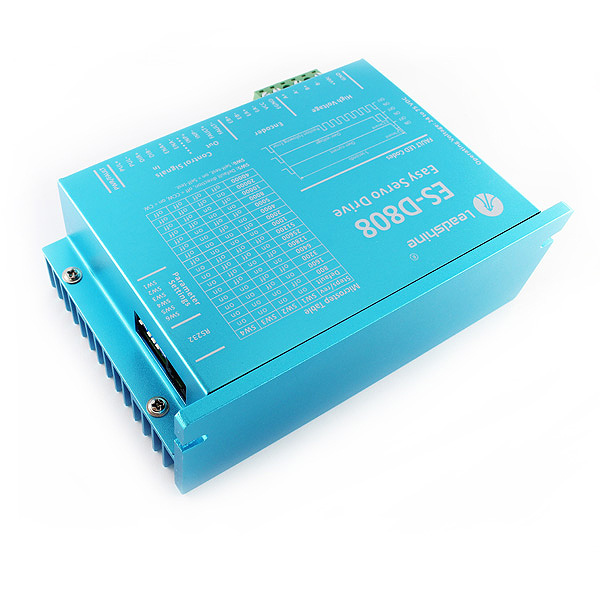

The Leadshine ES-D808 takes 24 to 80 VDC input voltage and output 0.5 to 8.2 A continuous load-based current. It is capable of driving NEMA 24 and 34 easy servo motors (stepper motors with encoders) with the position loop closed in real time. Parameter tuning tools, including ProTuner (Windows based setup software) can meet different tuning environments or requirements.

Please note: use for 2 phase bi-polar motors

• Step and Direction control
• Closed position loop for no loss of movement synchronisation
• Operating voltage
  • ES-D508: 20 to 45 VDC
  • ES-D808: 24 to 80 VDC
• Load based output current of
  • ES-D508: 0.5 to 8.0 A
  • ES-D808: 0.5 to 8.2A
• Plug&Play, no tuning for most applications
• High torque at starting and low speed
• No torque reservation
• Reduces the torque margin required for motors in your system
• High stiffness at standstill
• Significantly reduced motor heating
• Smooth motor movement and extra low motor noise
• Quick respons, no delay and zero settling time
• Support for PUL/DIR and CW/CCW control signals
• Opto-isolated inputs, supporting single-ended and differential signals
• Over-current, over-voltage, position following error protections

• Product Website

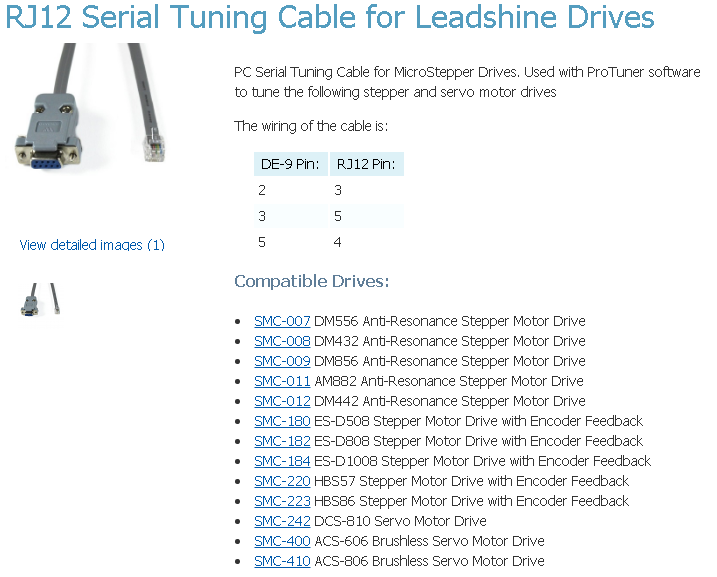

• PC Tuning Cable
• Datasheet ES-D808
• Datasheet ES-D508
• Compatible Power Cables (ES-D508 and ES-D808)
• Compatible Signal and Control Cables (ES-D508)
• Compatible Signal and Control Cables (ES-D808)
