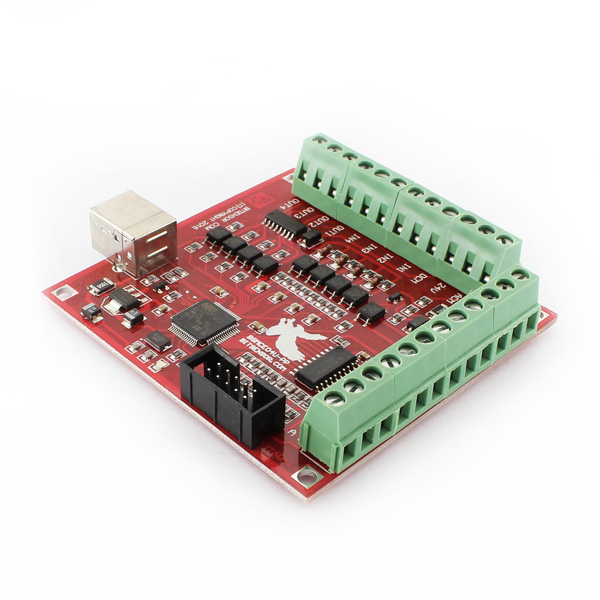

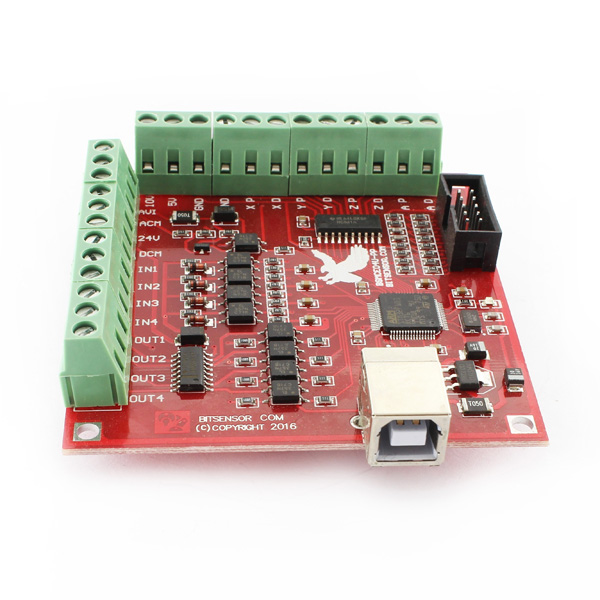

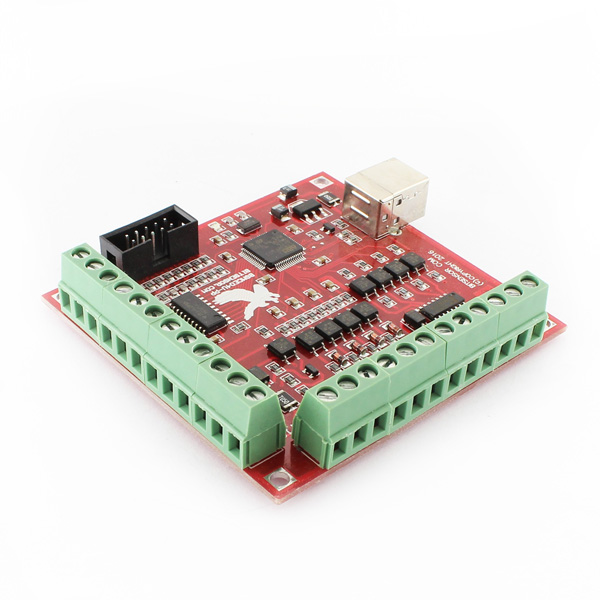

Mach3 USB 4 Axis 100KHz Smooth Stepper Motion Controller

Very easy to use USB driver card for Mach3. Support up to 4 axis, 4 general purpose inputs, 4 general purpose outputs and 1 variable spindle control.

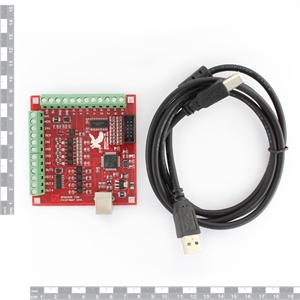

Package contains:

• 1 x Breakout board
• 1 x USB Cable

Please note: Both boards use the same Mach 3 drivers. Mach 4 drivers are not yet available.

DCM is the GND for +24V

•  CNC & Milling machine control.

• Relay Configuration

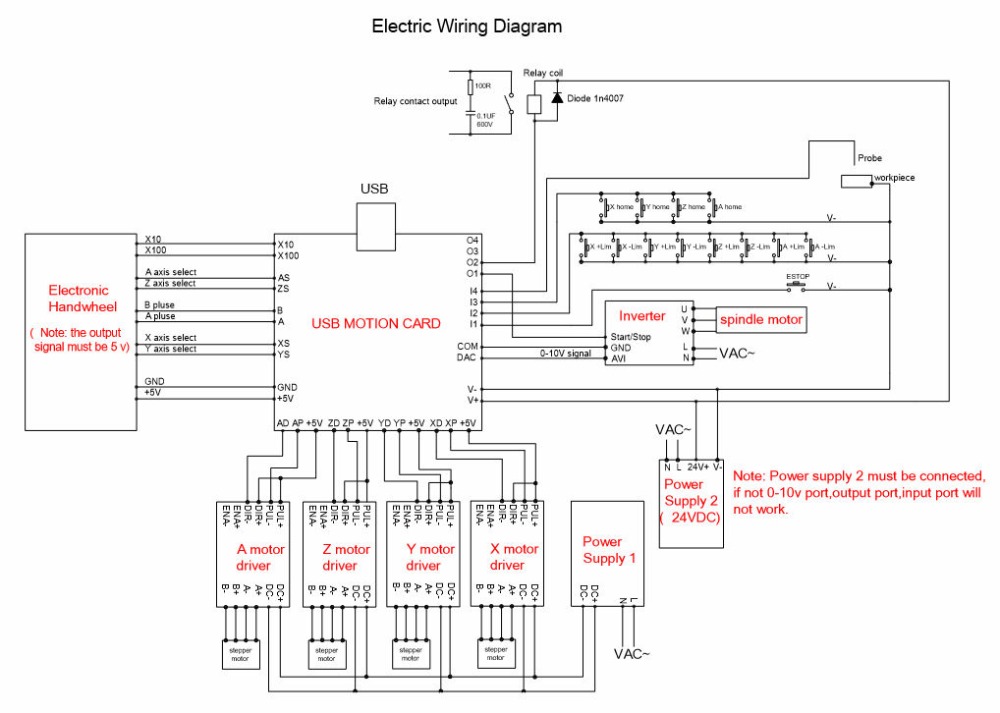

• Connection Diagram (Blue - MOT04101343)
• Driver CD (Blue - MOT04101343)
• Datasheet (Red - MOT-02092)
• Mach 3 Laser Setup Guide
• Mach3 THC Example
• Detailed Stepper Connection
• Mach3 Laser PWM Control
• Mach3 RS485 Spindle Control
