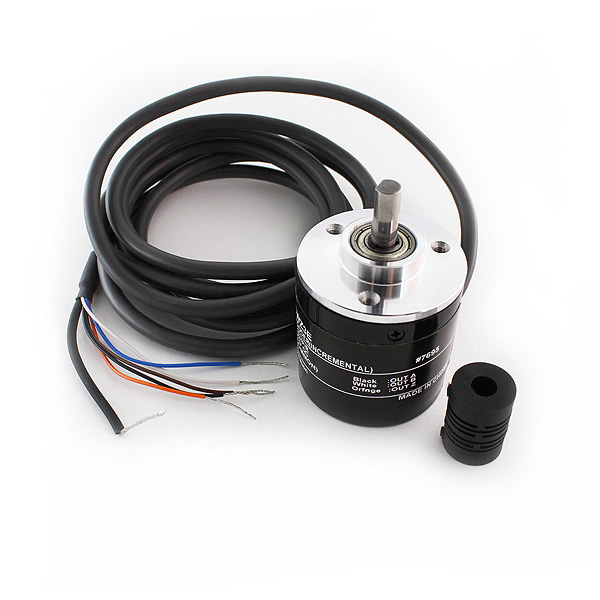

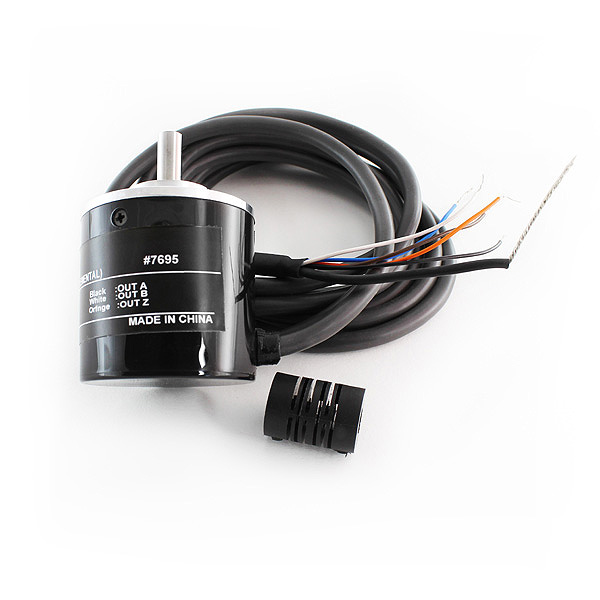

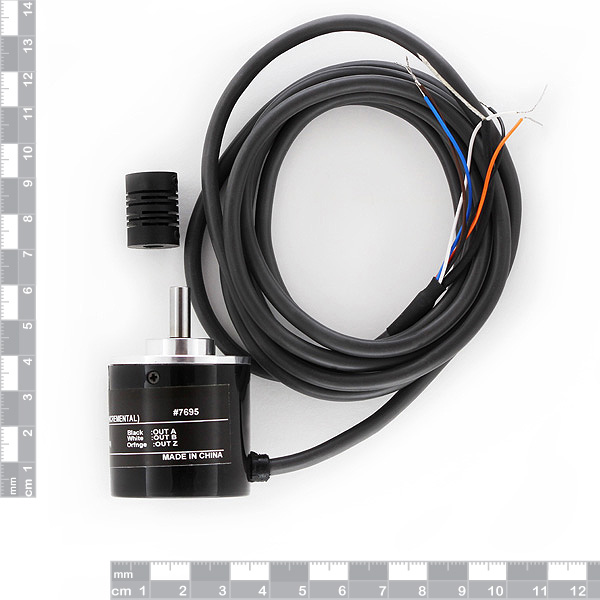

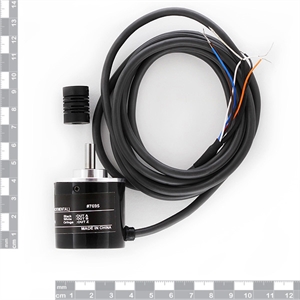

Rotary Encoder Quadrature - 5 Wire A, B and Z

This 1024 pulse per rotation rotary encoder outputs gray code which you can interpret using a micro ...

Description

This 1024 pulse per rotation rotary encoder outputs gray code which you can interpret using a micro controller and find out which direction the shaft is turning and by how much. This allows you to add feedback to motor control systems. Encoders of this kind are often used in balancing robots and dead reckoning navigation but it could also be used as a very precise input knob.

Note: these are relative encoders.

Features

  •  Resolution: 1024 Pulse/Rotation
  •  Input Voltage: 5 - 12VDC
  •  Maximum Rotating Speed: 6000rpm
  •  Allowable Radial Load: 5N
  •  Allowable Axial Load: 3N
  •  Cable Length: 50cm
  •  Shaft Diameter: 6mm

Documents

Picture of 1024 Pulses/Rev 5-12V
1024 Pulses/Rev 5-12V
SKU: 101376
Availability: 7 in stock
R1 129,30
:
360 Pulses/Rev 5-24V
SKU: 102097
Availability: 10 in stock
R1 129,30
:
